Series 1500 Laminated Low Area Bellows Expansion Joints are designed for installations where the principal movement is axial. Standard designs are 2” through 14” NPS with 2” or 3”axial compression. Service conditions are 150 PSIG or 300 PSIG to 500°F.
Series 1500 Laminated Low Area Bellows Joints
Information at a Glance
Series
1500 Laminated Low Area Bellows Joints
Material
Steel
Size
2-14 in. / 50-350 mm
Pressure
≤150 & 300 PSI / 10 & 20 Bar
Motion
6+ in. / 75+ mm
Canadian Registration
This product is registered throughout Canada under CRN 0D9278.59870YTNADD3
Other Products
Product Description
Technology & Advantages
The bellows element design includes attachment to the ID of schedule standard pipe to provide the minimum effective area and resulting pressure thrust. The area and force reductions may be more than 25% of a traditional OD mounted or externally pressurized designs. Three-ply, laminated, construction results in optimum cycle life and low spring constant for the design conditions. A stainless-steel flow liner is standard with negligible reduction of flow area and resulting flow interference and pressure drop. Standard Series 1500 Laminated Bellows Expansion Joints have a Five-year full replacement warranty.
Series Products
1501-1506 Single & Dual 3 Ply, Low Area & Liner Bellows Joint
1501HY-1502HY HyRiser 3 Ply, Low Area & Guide Liner Bellows Joint
Design Data

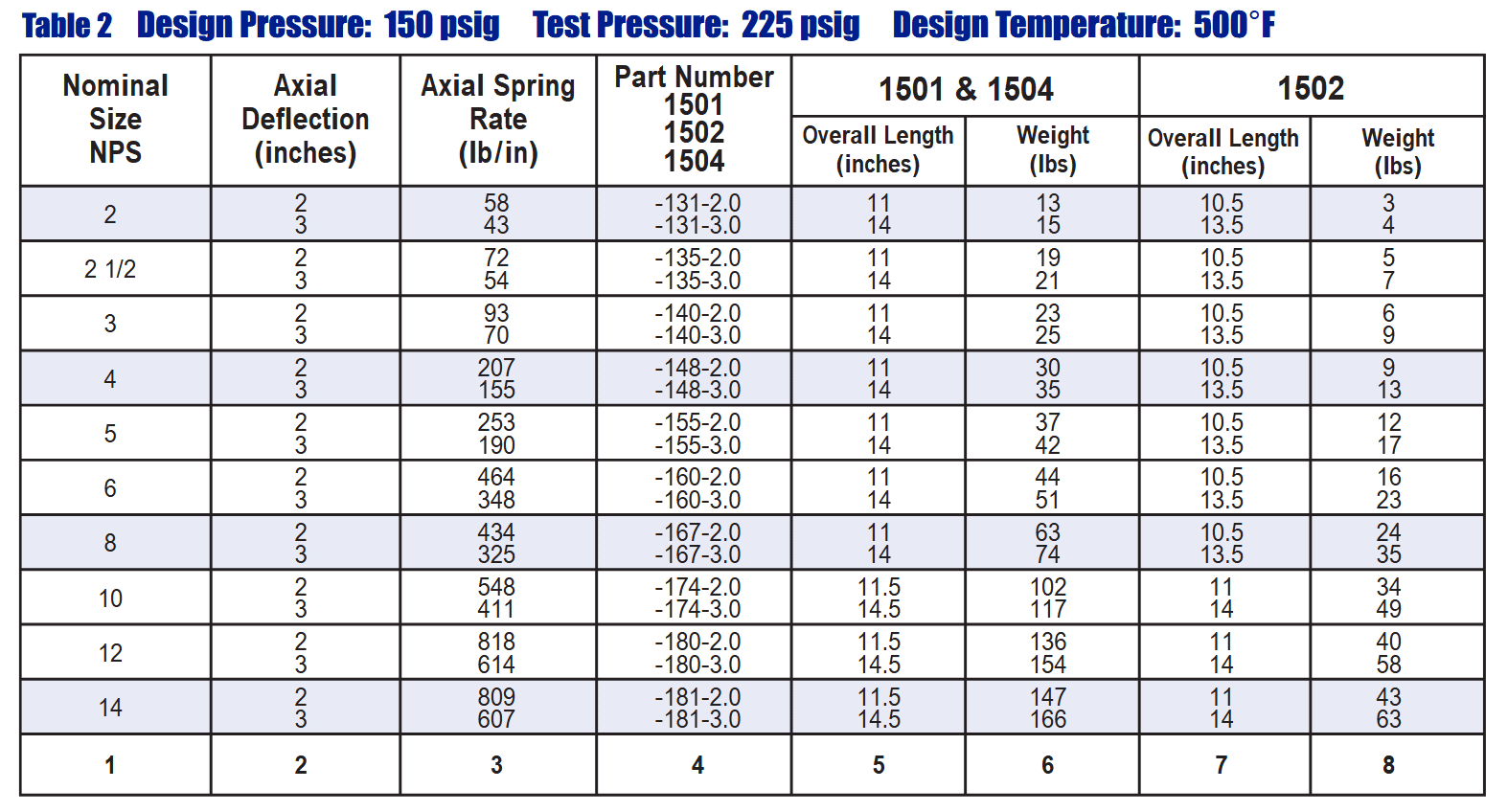

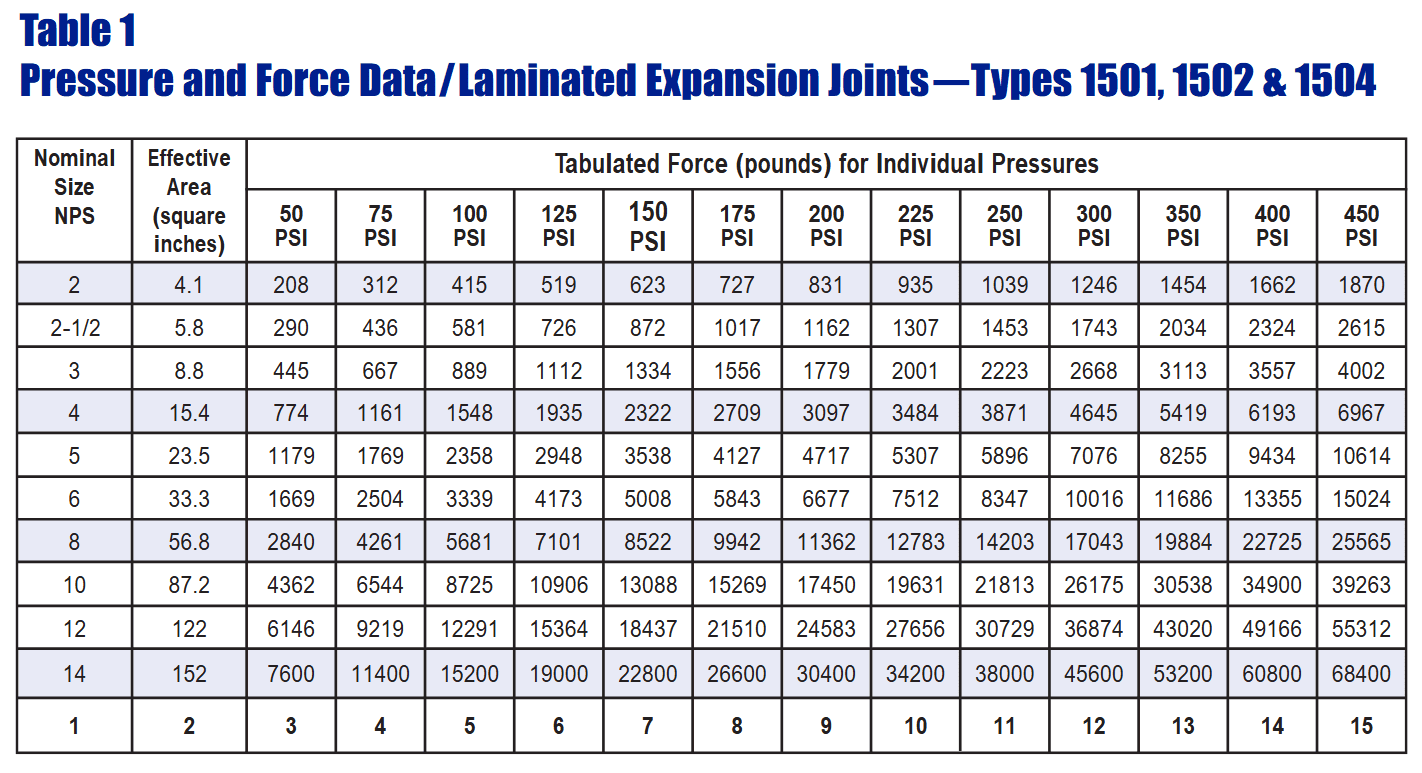

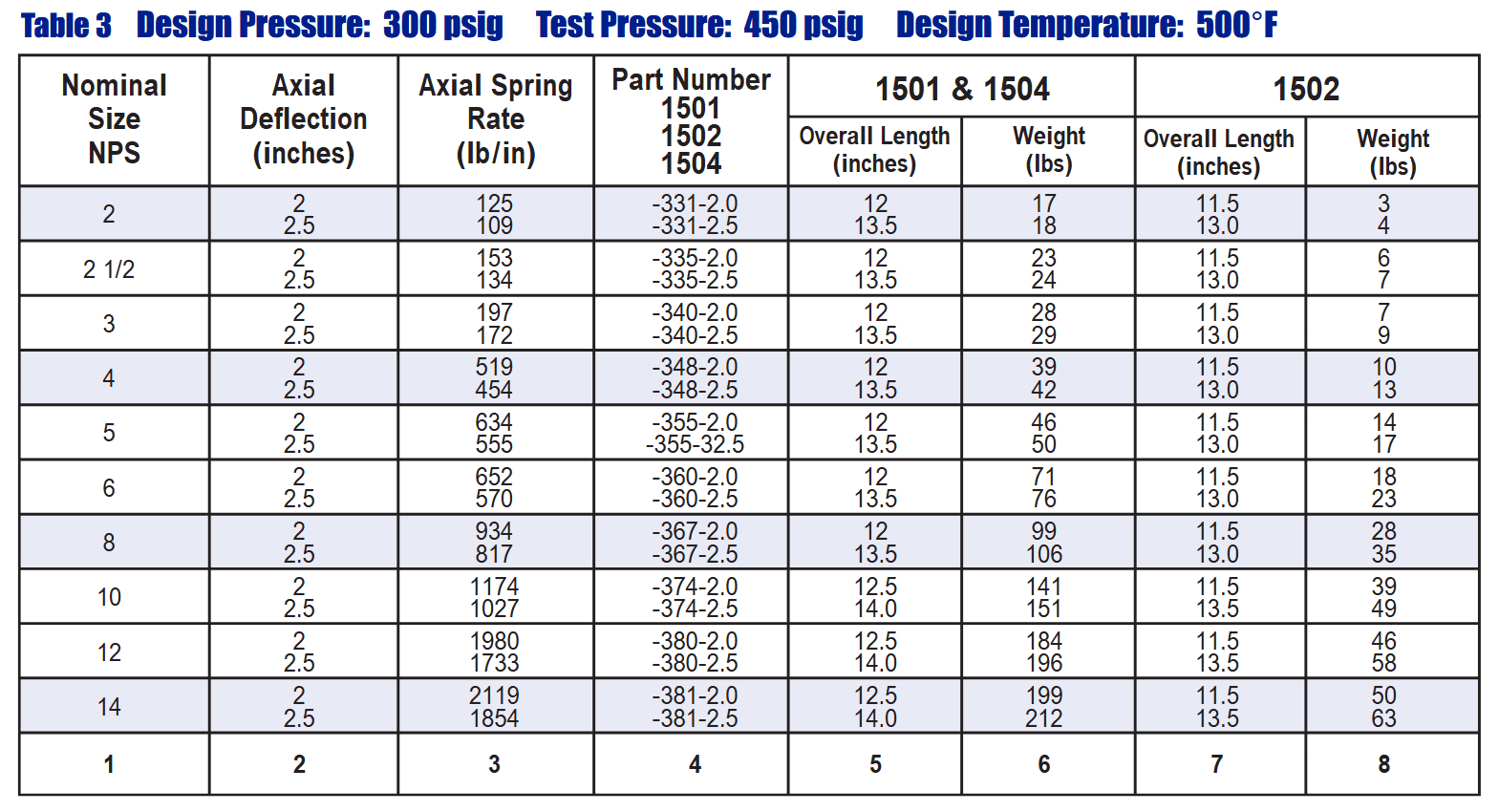

Note: Tabulated data is force produced by pressure only. Refer to Column 3 of Tables 2 & 3 for force resulting from bellows stiffness
