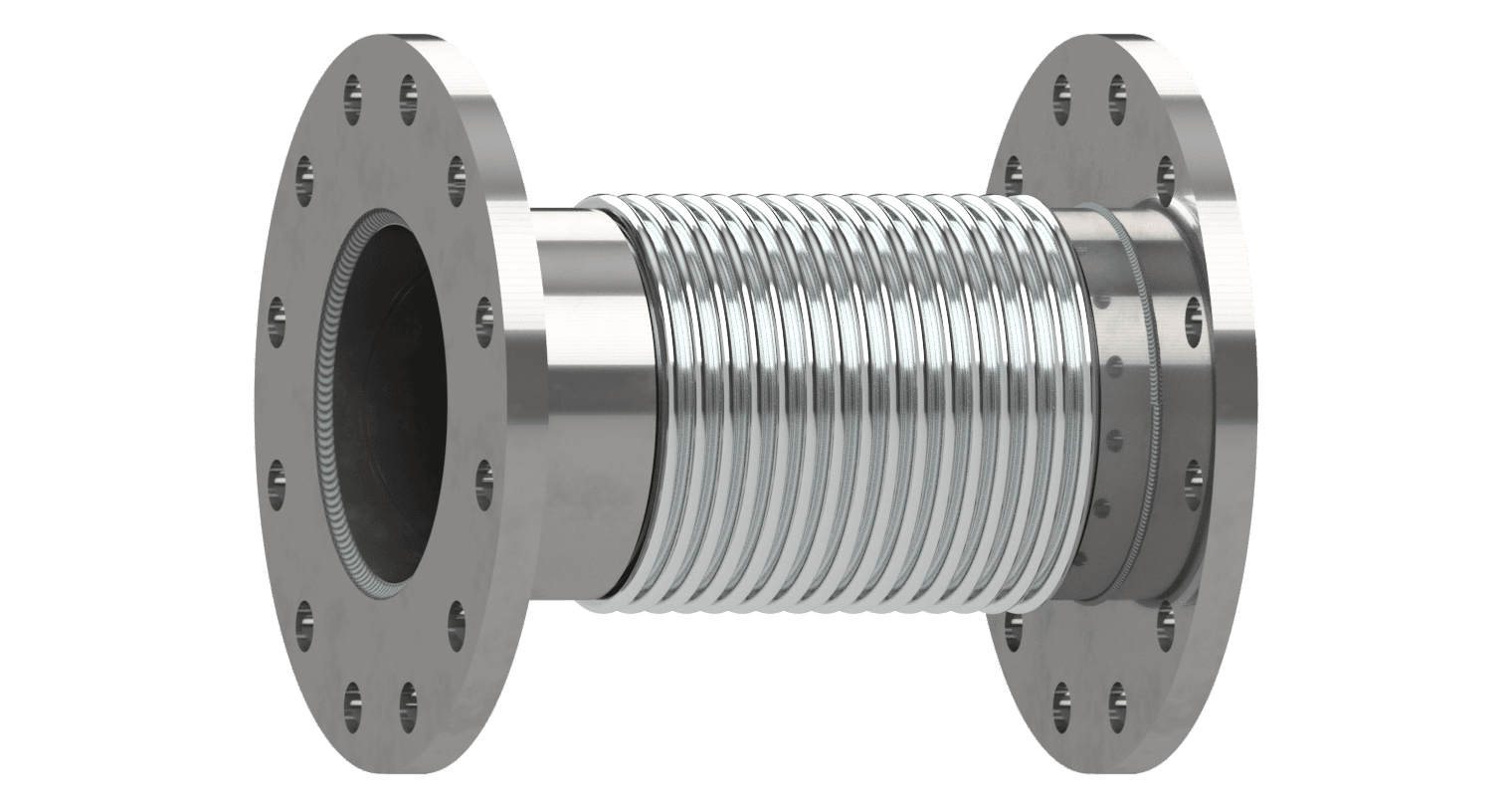

Laminated Metal Bellows
A versatile single-bellows expansion joint designed for general industrial piping systems requiring multi-plane movement capability.
• Nominal Sizes:2"–14" NPS
• Pressure Rating:150 / 300 PSIG @ 500°F
• Movement:Axial, Lateral, Angular
• Design Features:Laminated, single-ply bellows
• CRN:0D25724.2134567890NTYC
Common Applications
General industrial piping
Mechanical equipment connections
Thermal expansion compensation
Refineries and power generation
Hyspan Precision Products™ Catalog
DownloadCustom Engineered Solutions
Sizes from ¼" to 32 ft diameter
Full vacuum to 5,000+ PSIG
Temperatures up to 1,250°F
Materials including Inconel 625, Hastelloy X, Monel, Titanium
Example Projects
Inconel bellows for medical heart pump system
24" NPS dual-anchored high-temperature Hastelloy system
Fatigue-rated bellows for aerospace actuator
