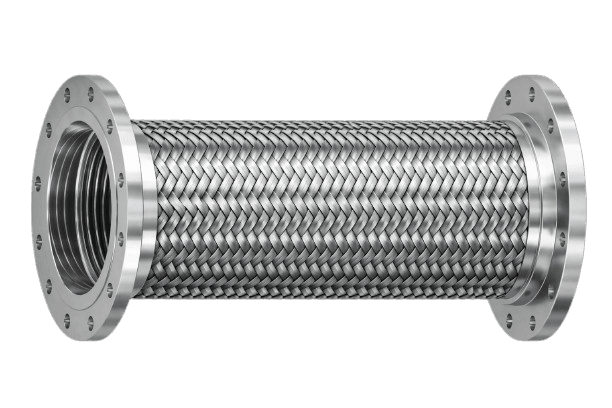

Braided Metal Hose Assemblies
A flexible metal hose assembly designed to accommodate multi-directional movement in tight or vibration-sensitive systems.
• Nominal Sizes:½"–10" NPS
• Pressure Rating:150 PSIG @ 500°F
• Movement:All planes of motion

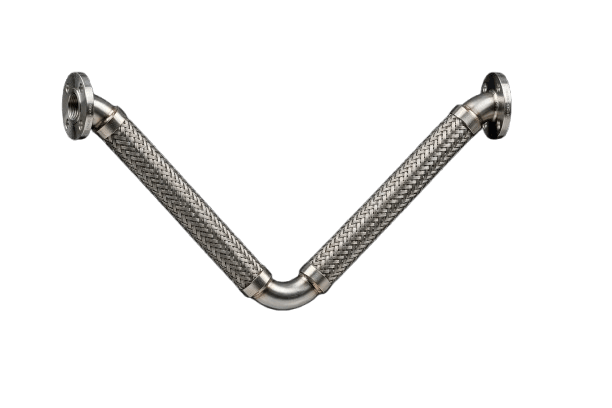

• Configurations:Straight, U, L, V
• Design Features:Braided hose assembly
Common Applications
Seismic isolation
Tight mechanical spaces
Vibration elimination
Scientific and cryogenic systems
Hyspan Precision Products™ Catalog
DownloadCustom Engineered Solutions
Sizes from ¼" to 32 ft diameter
Full vacuum to 5,000+ PSIG
Cryogenic and UHV capable designs
Corrosion-resistant alloys
Example Projects
12" V-Flex seismic isolation hose
UHV cryogenic hose for laboratory system
Monel marine-grade hose assemblies
