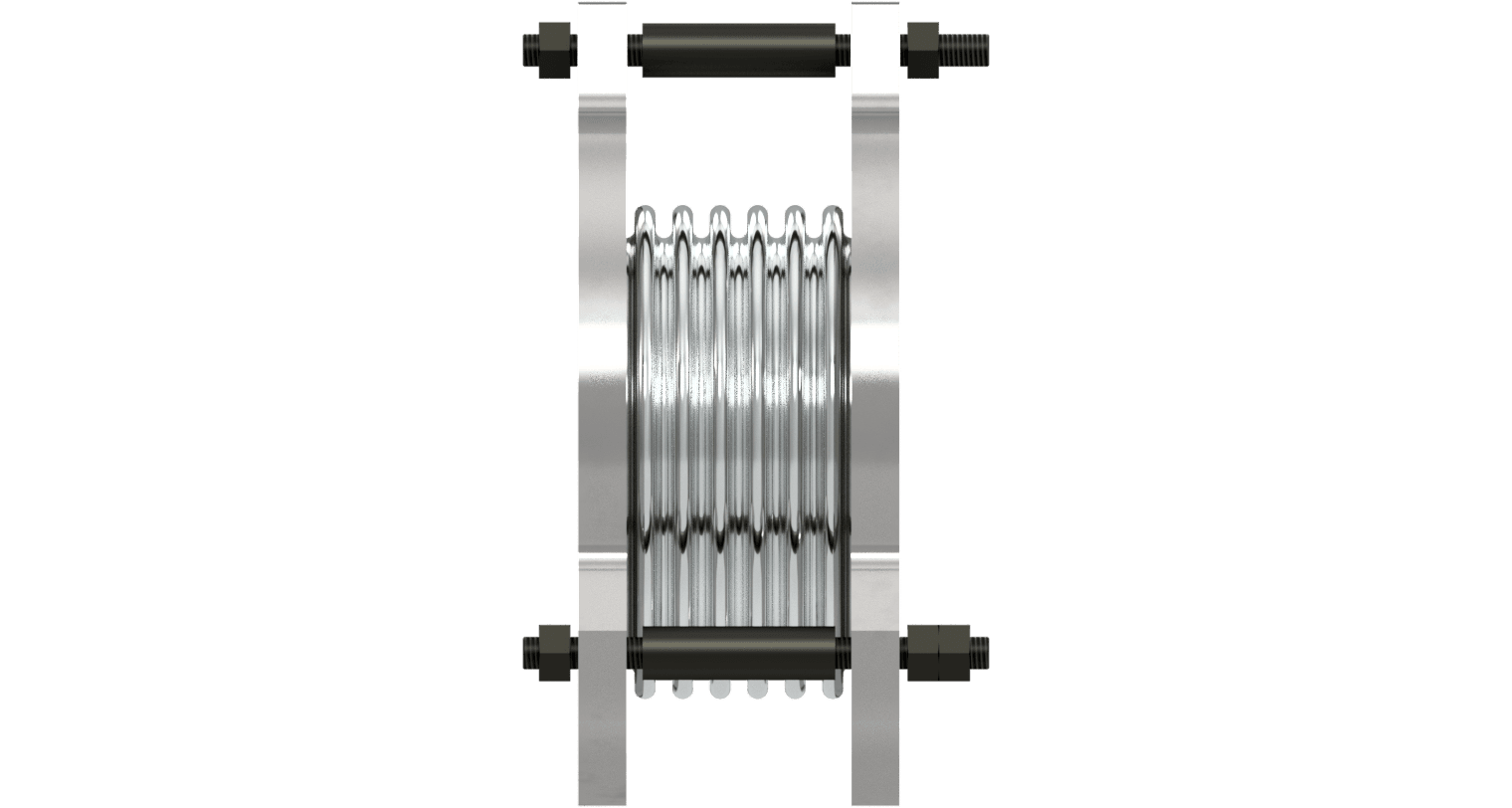

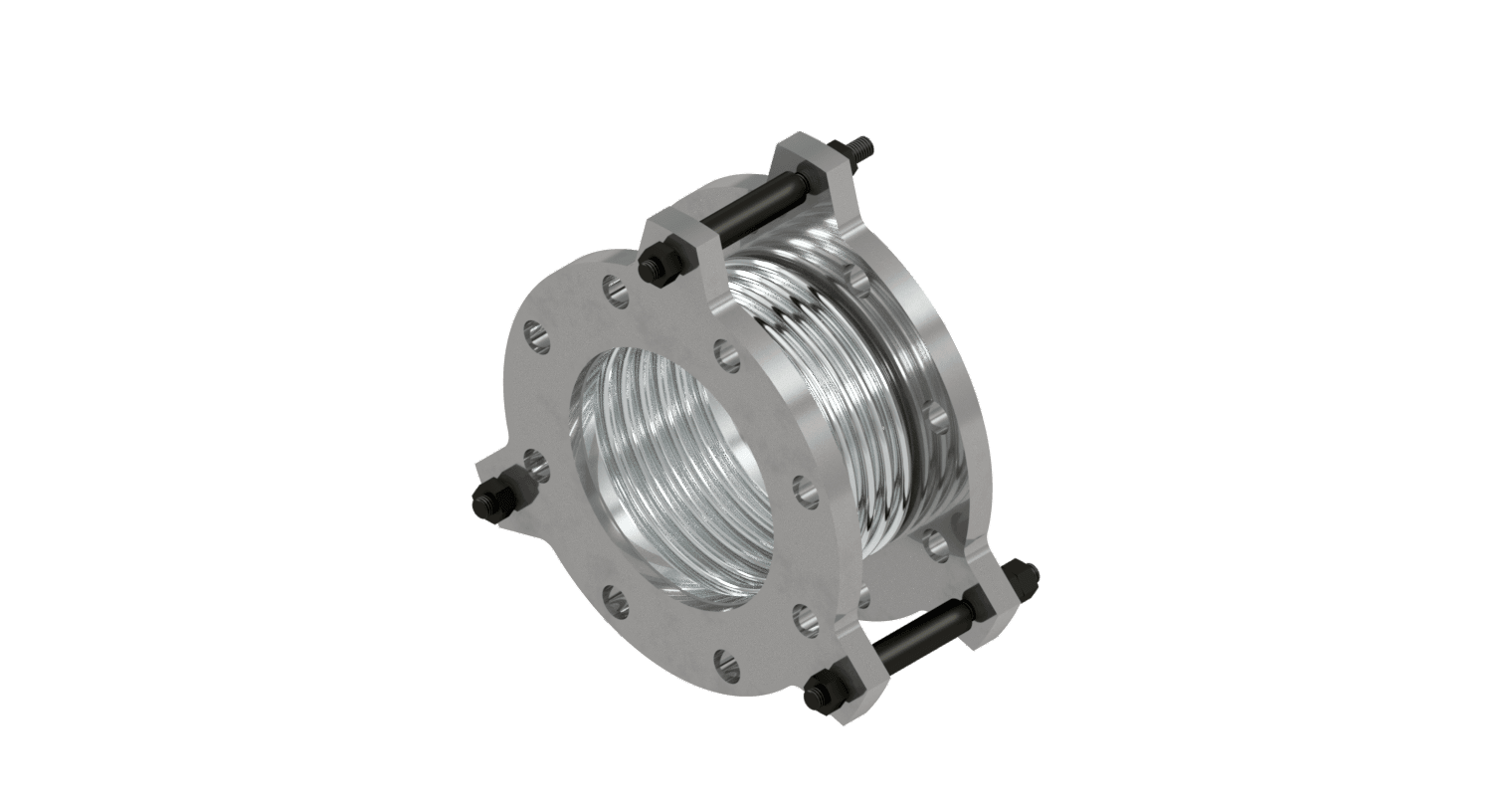

Bellows Pump Connectors
A compact bellows assembly designed to isolate vibration and absorb small axial movements adjacent to mechanical equipment.
• Nominal Sizes:1½"–24" NPS
• Pressure Rating:150 / 300 PSIG @ 500°F
• Movement:Vibration and small axial motion
• Design Features:Laminated bellows with thrust limit rods
• CRN:0D25724.2134567890NTYC
Common Applications
Pump connections
Mechanical rooms
Vibration dampening systems
Hyspan Precision Products™ Catalog
DownloadCustom Engineered Solutions
High-temperature alloys
Corrosive service materials
Defense and naval system configurations
Example Projects
Pump connector for weapons system
High-temperature Inconel chemical pump assembly
