Series 4500 Braided Hose Connectors

Information at a Glance

Series

4500 Braided Hose Connectors

Material

Steel

Size

1/2 – 32 in. / 12 – 800 mm

Pressure

150 PSI / 10 Bar

Canadian Registration



This product is registered throughout Canada under
CRN 0D9278.59870YTNADD3

Other Products

Product Description

Series 4500 Braided Hose Connectors

Series 4500 Metal Hose Pump Connectors are designed to be adjacent to mechanical equipment to isolate vibration, absorb small movements and to facilitate installation. The metal hose and braid are heavy duty industrial weight products.

Hyspan Metal Hose Pump Connectors are manufactured by Universal Hose & Braid and inventoried in Chicago.

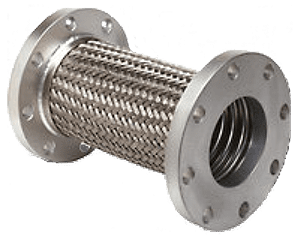

Type 4501 Metal Hose Pump Connectors Installed on the suction and discharge of a pump

4501 Fixed Flange

4502 Fixed Flange

4503 Fixed & Floating

4504 Weld End

4505 Male Pipe Thread

Design Data

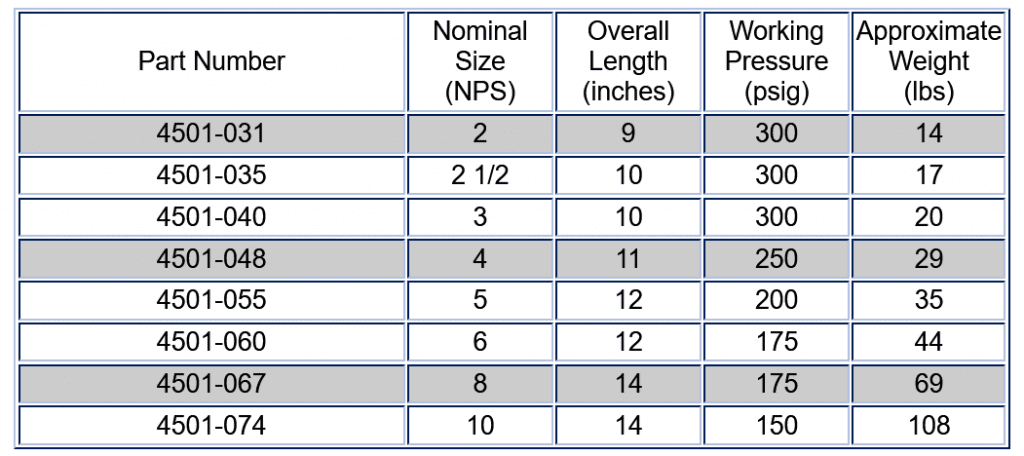

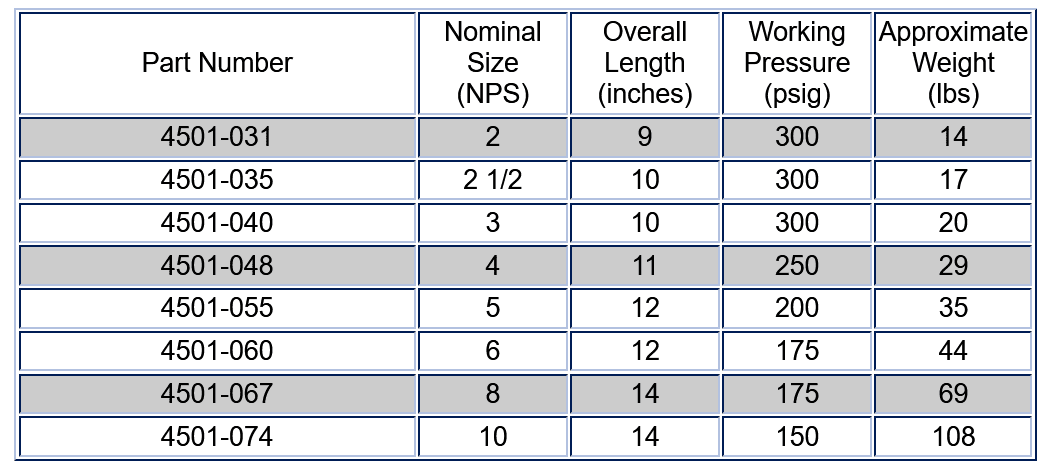

Table 1: 4501 Fixed Flange Part Number Reference

4501 Fixed Flange

  • Design temperature: 500°F
  • Type 321 annular corrugated metal hose with Type 304 S/S stainless steel braid
  • Carbon steel flat face plate flanges with outside diameter and drilling in accordance with ANSI B16.5

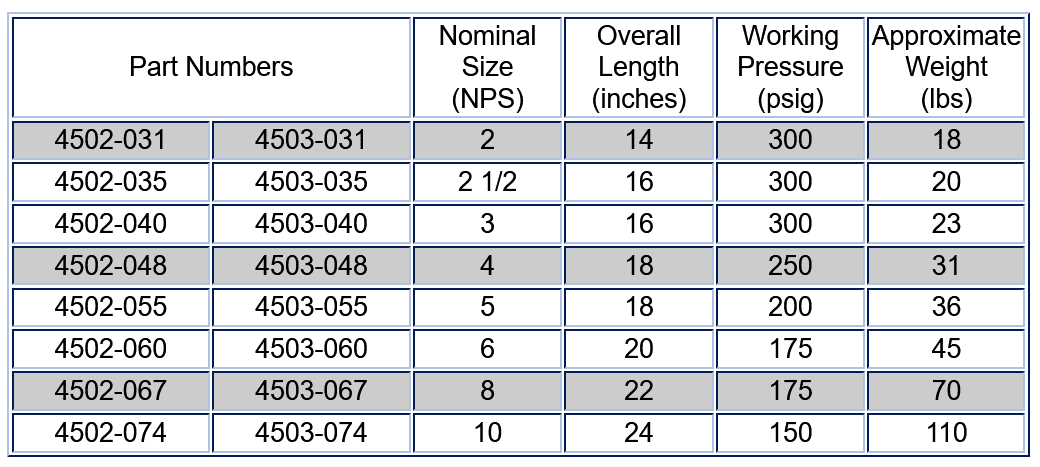

Table 2: 4502 Fixed Flange and 4503 Fixed & Floating Part Number Reference

4502 Fixed Flange

4503 Fixed & Floating

  • Design Temperature: 500°F
  • Type 321 annular corrugated metal hose with Type 304 S/S stainless steel braid
  • Carbon steel flat face plate flanges with outside diameter and drilling in accordance with ANSI B16.5
  • Carbon steel fittings in accordance with ANSI B16.9

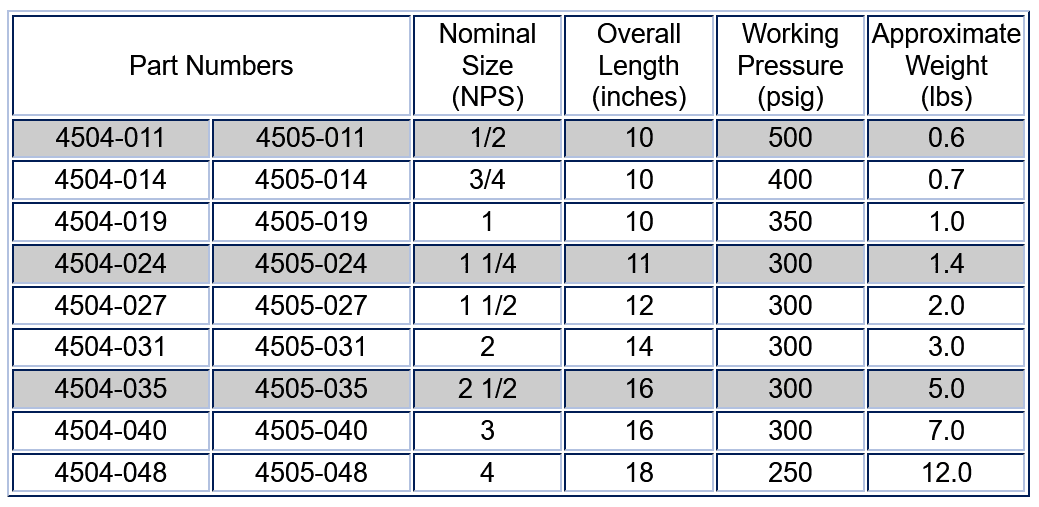

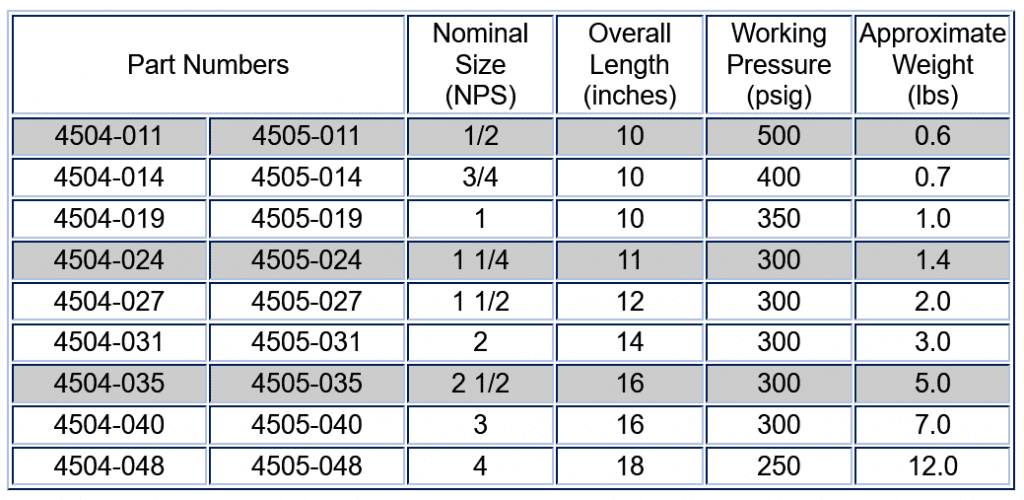

Table 3: 4504 Weld End and 4505 Male Pipe Thread Part Number Reference

4504 Weld End

  • Design Temperature: 500°F
  • Type 321 S/S annular corrugated metal hose with Type 304 S/S stainless steel braid
  • Carbon steel fittings in accordance with ANSI B16.9

Series Products

Series 4500 V-Flex Connectors
Series 4500 V-Flex Connectors are designed to absorb thermal expansion or contraction, or for seismic isolation of steel pipe or copper tube installations. The braided metal hose elements that are incorporated into the design offer benefits that are not available in other products that are used for these applications, and the unique Hyspan “V” configuration provides advantages over other metal hose connectors. Learn more…

Anaconda Vibration Eliminators
Anaconda Vibration Eliminators are designed for use with nominal copper tube sizes 1/8″ through 4″ – male and female sweat connections. Registered as a component by Underwriters Laboratories Inc. for refrigeration service these connectors are satisfactory for general purpose applications at an economical cost. Learn more…
